The Insectothopter

THE RUMOR

            There is rumor about a flying robot.  At recent political events in Washington D.C. and New York, several persons have reported sighting something that they described as a cross between a slightly oversized dragonfly and a miniature helicopter.  Perhaps, these reporters have mistaken real insects for robots . . . or perhaps not.  [1]

            There are no insect sized UAV’s.  The smallest is a bird-sized 'bot -- the Nano Hummingbird. Formally named, the “Nano Air Vehicle” (“NAV”), this bird 'bot was the developed, in 2011, by AeroVironment, Inc. under the direction of DARPA.

"Nano Air Vehicle" or Robo-Hummingerbird

THE PROBLEM IS FLIGHT

            So, why not just shrink Robo-Hummer down to the size of an insect?  The problem is flight.

            With robotic insects, flight itself is the biggest challenge.  While bird-sized flying drones are being perfected with relative success, flying insect ‘bots present a special aerodynamic problem.  It’s the size.  If you shrink a bird-sized drone down to the size of an insect -- it won’t fly.

            A roboticist at the University of California at Berkeley, Ronald Fearing, told the Washington Post that “the rules of aerodynamics change” with an object as small as an insect.  [2] Unlike bird wings, insect-sized wings must move with amazing precision.  Replicating these precise wing movements is a formidable engineering challenge.  In fact, scientists only recently came to understand how insects fly at all.  Compounding these problems, such precision wing movements require yet larger supplies of portable power.  [3]

SOME HISTORY

            While robotic insect flight, in reality, eludes modern technologists, in science fiction, the technology was mastered in 1936 in Raymond Z. Gallun’s The Scarab.  Gallun’s robotic beetle flew like any other insect, but transmitted to its “manipulator” what it heard and saw through its “ear microphones” and “minute vision tubes.”

            Philip K. Dick refers to a commercial robotic fly in his novel, The Simulacra.

            Fast forward to the 1970’s.  America’s CIA (Central Intelligence Agency) had developed a eavesdropping (listening) device, but needed a way to use it.  In other words, the agency needed a way to “deliver” it to the target locations.  Needless to say, the delivery had be unnoticed if the device was to serve its purpose.

Insectothopter

THE FIRST MINI UAV

            An insect-sized mini UAV seemed ideal.  Of course, making the UAV look like an actual insect solved another problem - camouflage.  It wasn't enough to get the listening device to the target.  The target must, also, not know that the device was there.   At first, the bumblebee was to be the model for the mini UAV, but this bee was rejected due to its erratic flight.  One project member, reasonably familiar with insects, suggested the dragonfly.  This proved to be the almost perfect solution.

            One has to admire the simple ingenuity that went into the construction what would become and insectothopter.  Even with all the grants and theoretical computer models of today, the quest for the insect sized drone still eludes.   Yet, in the 1970’s, a group of project technologists just did it – in rather short order.

            Today, we are just learning exactly how insects manage to fly.  But, again, the CIA technologists designed a set of wings with up and down movements that gave the insectothopter both lift and thrust.

            Today, the development of a light, yet powerful, propulsion system for small drones remains a daunting task.  But in those far off days of the 1970’s, the CIA technologists simply used a gasoline engine to power the insectothopter.  Certainly, the engine was loud, but the project members had selected their "model" insect well.  Have you ever heard a dragonfly?  The gasoline engine might make considerably less noise than the real thing..

            But how could you design a gasoline (or any other kind of) engine that small?  Today, it would require a staggering amount of dollar grants and a consortium of research facilities to design a computer simulated prototype.  But, in the 1970’s, you just found a good watchmaker.  And project did just that.

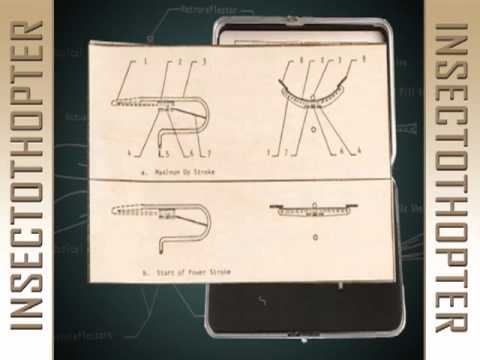

            The result was a miniature oscillating engine that would make the wings beat.  A fuel bladder carried the engine's liquid propellant.  Not only did the liquid propellant power the engine, but the excess gas was vented out the rear of the mini UAV providing added thrust.  The insectothopter was directed using a laser beam and, finally, was hand-painted to look like a dragonfly.

Insectothopter

            But the insectothopter never made it into the field.  It’s downfall was its inability to withstand cross-drafts.  Real insects can drift a bit with the wind, but the operator of a surveillance drone must be able to direct it to a target if any meaningful surveillance is to take place.  Only a five mile per hour crosswind would throw the insectothopter off course.

            Today, the smallest operational UAV is AeroVironment’s “Nano Air Vehicle” (“NAV”).  With the story of the insectothopter in mind, it’s easier to understand why DARPA’s project specifications for that project required that the “Nano Air Vehicle” demonstrate the ability to hover in a 5 mph side-wind without drift of more than one meter.

"Nano Air Vehicle" or Robo-Hummingerbird

THE END?

            So, with the retirement of the insectothopter, the development of robotic insects ended -- only reappearing with the modern resurgence of robotic research.

            But remember those recent political events in Washington D.C. and New York, at which several persons reported seeing something that they described as a cross between a slightly over-sized dragonfly and a miniature helicopter.  Perhaps, these reporters have mistaken real insects for robots . . . or maybe not.

            Is it possible that the CIA secretly continued to develop insect drones?

            Has some U.S. Government agency developed a secret, advanced version of the insectothopter?  Sources at the CIA have declined to comment.  When questioned about the possibility of the secret development of flying drone insects, an “expert in unmanned aerial vehicles,” retired Colonel Tom Ehrhard, simply said, "America can be pretty sneaky.”  [4]
